  • GE Vernova’s Medium-Voltage UPS Targets the AI Data Center Power-Density Wall

    GE Vernova’s Medium-Voltage UPS Targets the AI Data Center Power-Density Wall

    GE Vernova, the energy-equipment company spun off from General Electric in 2024, has introduced a medium-voltage uninterruptible power supply (UPS) aimed at AI data centers and other energy-intensive industries, according to coverage by ARC Advisory Group in August 2026. A UPS is the equipment that keeps critical loads powered during the seconds-to-minutes gap between a grid failure and backup generators taking over.

    The significance is architectural: UPS systems for data centers have traditionally operated at low voltage (below 1,000 volts), and moving that protection layer up to medium voltage — typically the 1kV–35kV range — signals that vendors now see AI campuses as too large for the conventional approach to scale gracefully.

    Executive Summary

    The announcement positions GE Vernova’s Electrification business in one of the fastest-growing corners of the power-equipment market: backup power for AI data centers. Training clusters have pushed individual racks toward and past 100kW, and hyperscale and neocloud operators are now planning campuses measured in the hundreds of megawatts. At that scale, the traditional pattern — dozens or hundreds of paralleled low-voltage UPS modules, each protecting a slice of the load — multiplies floor space, copper, conversion losses, and points of failure.

    A medium-voltage UPS protects the load higher up the electrical distribution chain, where the same power flows at higher voltage and therefore lower current. Fewer, larger protection blocks can replace fleets of smaller ones. GE Vernova is not alone in reading the market this way, but a product launch from one of the largest grid-equipment manufacturers is a meaningful signal that medium-voltage protection is moving from niche to mainstream consideration.

    Readers should note the limits of what has been disclosed: the source material available to us is headline-level, and we could not verify power ratings, topology, efficiency figures, availability dates, or customer commitments. Our analysis below addresses the strategy; the specification questions remain open.

    Why Backup Power Is Hitting a Voltage Ceiling

    Power equals voltage times current, so delivering more power at a fixed low voltage means proportionally more current — and current is what sizes conductors, breakers, and busway. A conventional data center UPS operates around 400–480 volts, and at that voltage a single system is practically limited to a few megawatts. Protecting a 100MW campus this way requires very large fleets of paralleled units, each with its own batteries, switchgear, cabling, and maintenance schedule.

    AI has broken the assumptions this architecture was built on. When racks drew 5–15kW, carving a facility into small low-voltage protection zones was sensible. With accelerated-computing racks drawing many times that, and single buildings approaching the load of a small city, the low-voltage approach consumes an increasing share of the floor area, capital budget, and construction timeline. Copper procurement alone has become a visible constraint on data center schedules.

    Moving the UPS to medium voltage — the tier utilities and campuses use for distribution, roughly 1kV to 35kV — cuts current by an order of magnitude for the same power. That means fewer conversion stages between the utility feed and the protected bus, less conductor mass, and protection blocks sized in tens of megawatts rather than single digits.

    The Trade-offs: Fewer, Bigger Blocks Cut Both Ways

    The efficiency and footprint logic is genuine, but consolidation concentrates risk. A campus protected by a handful of large medium-voltage blocks has fewer failure points, yet each failure affects more load — so redundancy design, fault isolation, and maintainability become the make-or-break engineering questions. The release headline does not tell us how GE Vernova’s design addresses concurrent maintainability or fault ride-through, and those answers will matter more to buyers than the voltage class itself.

    Operations change too. Medium-voltage equipment demands different technician qualifications, arc-flash procedures, and service ecosystems than the low-voltage gear most data center facilities teams know. Medium-voltage rotary UPS systems — machines that store energy in a spinning mass rather than batteries — have existed for years from specialist vendors, and they earned a reputation as robust but operationally distinct. Whether GE Vernova’s offering is static (power-electronics-based) or rotary is not stated in the material we reviewed, and it materially changes the competitive comparison.

    There is also a granularity cost. Small modular UPS units let operators grow capacity with demand; large blocks force bigger capital steps. For hyperscalers building entire campuses at once that is a fair trade. For enterprises and smaller colocation operators, it may not be — which suggests this product aims squarely at the top of the market.

    GE Vernova’s Position in a Crowding Field

    Since its April 2024 spin-off from General Electric, GE Vernova has ridden two demand waves: grid modernization and data center electrification. Its Electrification segment sells the transformers, switchgear, and power-conversion equipment that AI campuses consume in bulk, and the company already has relationships with the utilities and hyperscalers making these purchasing decisions. A medium-voltage UPS extends that portfolio one layer closer to the IT load — territory historically held by Schneider Electric, Vertiv, Eaton, and ABB in low-voltage UPS, and by specialist rotary vendors at medium voltage.

    The strategic logic favors integrated suppliers: an operator buying medium-voltage switchgear, transformers, and backup protection from one vendor simplifies interface engineering and accountability. But incumbency in grid equipment does not automatically translate to credibility in mission-critical backup power, where buyers weight field-proven reliability data heavily. The burden of proof — reference deployments, third-party certification, demonstrated availability numbers — sits with any new entrant to this layer, regardless of parent-company scale.

    Background

    GE Vernova was created in April 2024 when General Electric completed its three-way split, separating its energy businesses from aerospace and healthcare. The company spans gas and wind power generation, nuclear technology, and an Electrification segment covering grid solutions and power conversion — the segment most directly leveraged to data center construction. Demand for transformers, switchgear, and backup power has surged with AI buildouts, producing extended lead times across the industry.

    The data center UPS market, meanwhile, has been dominated for decades by low-voltage static systems that convert utility power through batteries via power electronics. As individual AI campuses have grown from tens to hundreds of megawatts, the industry has begun rethinking the entire power chain — higher distribution voltages, direct-current architectures, and now medium-voltage protection — to reduce losses, copper use, and construction time. ARC Advisory Group, which covered this announcement, is an industry-analyst firm focused on industrial and infrastructure technology.

    Source: GE Vernova Introduces Medium-Voltage UPS for AI Data Centers and Energy-Intensive Industries — ARC Advisory Group coverage of GE Vernova’s product introduction, August 2026.

  • Corinex Grid Intelligence Node Targets the Low-Voltage Grid’s Observability Gap

    Corinex Grid Intelligence Node Targets the Low-Voltage Grid’s Observability Gap

    Corinex announced the launch of the Grid Intelligence Node (GIN) on August 24, 2026, releasing the news simultaneously in English, German, French, and Spanish from Vancouver and Mannheim. GIN is a retrofit device that combines broadband powerline (BPL) communication with three-phase current, voltage, and power-quality measurement at low-voltage feeders — the final segment of the grid that serves homes and small businesses.

    Installed in secondary substations, cable distribution cabinets, and branch points, the node delivers 1-minute operational snapshots, 15-minute energy totals, and optional 1-second reporting, and feeds data into Corinex’s Plexigrid Intelligence modeling platform as well as third-party utility systems. The company says GIN is available now for evaluations, pilots, and commercial rollouts; no customers, pricing, or deployment figures were disclosed.

    Executive Summary

    The announcement addresses a genuine and well-documented problem: distribution utilities have historically had very little real-time visibility into the low-voltage network. Transmission grids are heavily instrumented, but the feeders that actually deliver power to end customers were built for one-way flow and monitored mostly through planning assumptions, delayed smart-meter data, and estimated load profiles. Electrification — electric vehicles, heat pumps, rooftop solar — is now stressing exactly that blind segment, and Corinex’s CTO Sam Shi frames GIN as the tool that shows operators “when, where, and to what extent” intervention is needed.

    Corinex’s differentiator is its transport layer: GIN sends measurement and power-quality data over the existing low-voltage wires themselves via broadband powerline communication, so utilities don’t have to build a separate communications network or install certified billing meters at every measurement point. The data can flow into Corinex’s own GridValue management and Plexigrid Intelligence digital-twin software, or into a utility’s existing ADMS and SCADA platforms via MQTT, Ethernet, and Modbus.

    What matters strategically is the stack play. Corinex is positioning sensing hardware as the feedstock for grid modeling and optimization software — a “digital twin” is only as good as its input data, as Shi himself notes. The release is credible on technical specifics but silent on commercial ones: there are no named utility customers, no pilot results, no pricing, and no independent validation of the accuracy claims.

    Why the Low-Voltage Grid Became the Blind Spot That Matters

    For most of the grid’s history, ignorance about low-voltage feeders was affordable. Power flowed one way, loads were predictable, and utilities sized neighborhood transformers with generous margins using statistical load profiles. That model is breaking. EV chargers can double a household’s peak demand, heat pumps shift load into winter evenings, and rooftop solar pushes power backward up feeders that were never designed for reverse flow. Meanwhile, surging electricity demand across the system — including from data-center buildout — is consuming the headroom utilities once relied on, making every megawatt of latent capacity in the existing distribution network more valuable.

    The core problem GIN targets is that most utilities cannot see any of this happening in real time. Smart meters report consumption with delays and at billing granularity, not operational granularity. The release’s claim that operators depend on “planning assumptions, delayed meter data, and estimated load profiles” is a fair characterization of the industry status quo, and it explains why low-voltage observability has become a recognized category rather than a niche. A utility that cannot measure a feeder’s actual loading must either over-invest in copper and transformers or accept unknown risk — both expensive answers.

    Sending Data Over the Wires You Already Own

    Corinex’s architectural bet is broadband powerline: using the electricity cables themselves as the communications medium. The economic logic is straightforward. Instrumenting thousands of secondary substations and cable cabinets normally means paying for cellular contracts or fiber at each site; BPL rides infrastructure the utility already owns. GIN doubles as a BPL repeater with Ethernet connectivity, so each node extends the communications mesh while it measures. For retrofit deployments — which is how virtually all low-voltage monitoring will happen — that dual role is a real cost argument.

    The measurement specifications are respectable for operational (non-billing) use: three-phase voltage and current with a stated RMS error of ≤0.5%, active/reactive/apparent power, harmonics and total harmonic distortion up to the 51st harmonic, and detection of voltage sags, swells, overload, and phase imbalance. Support for split-core current transformers and Rogowski coils matters practically, because it means installation without disconnecting conductors — a major factor in retrofit labor costs. The −25°C to +70°C operating range and optional IP67-rated (dust- and water-proof) enclosure address the unglamorous reality of curbside cabinets.

    The honest caveat is that these are vendor-stated specifications. BPL performance is also famously dependent on line conditions — noise, distance, and network topology — and the release does not address throughput, latency guarantees, or how the system behaves on electrically noisy feeders, which are precisely the feeders most worth monitoring. None of this undermines the approach; it simply means pilot results, not datasheets, will decide the argument.

    The Digital-Twin Play: Hardware as Feedstock for Software

    The more strategically interesting layer is what sits above the node. GIN’s data feeds Corinex Plexigrid Intelligence, which reconstructs and models the network — a “digital twin,” meaning a continuously updated software replica of the physical grid. The release is candid about the dependency: “Digital twins are only as reliable as the data they are built on,” Shi says. That is true, and it cuts both ways — it is an argument for GIN, and an acknowledgment that grid-modeling software without field measurement has been running on assumptions.

    The commercial destination is capacity decisions. A utility with an accurate low-voltage twin can quantify hosting capacity for EVs, heat pumps, and solar, and — critically — decide whether a constraint should be solved with flexibility (paying loads to shift) or with physical reinforcement (new cables and transformers). Those decisions carry large capital consequences, which is why observability vendors, meter manufacturers, and ADMS incumbents are all converging on this space. Corinex’s answer to lock-in concerns is notable: alongside its own stack, the release emphasizes open integration into ADMS, SCADA, and other platforms via MQTT and Modbus. That is the right posture for selling to utilities, which are structurally averse to single-vendor dependence — though the depth of those integrations is asserted, not demonstrated, in this announcement.

    Background

    Corinex, headquartered in Vancouver, Canada, with a presence in Mannheim, Germany, positions itself as a provider of technologies for the digital upgrade of low- and medium-voltage distribution grids. Its platform pairs broadband powerline communication — data transmission over the electricity cables themselves — with real-time sensing, network modeling, and edge control, and includes the GridValue network-management system and the Plexigrid Intelligence modeling and optimization software into which GIN’s measurements feed.

    The market context is the broader electrification wave: as EVs, heat pumps, and distributed solar concentrate stress on the least-instrumented part of the grid, low-voltage observability has emerged as a distinct product category. Utilities and regulators increasingly treat measured grid data as a prerequisite for both congestion management and for unlocking spare capacity in existing infrastructure — the alternative to slow, capital-intensive physical reinforcement.

    Source: Corinex stellt Grid Intelligence Node vor: präzise Transparenz über den tatsächlichen Netzzustand im Niederspannungsnetz — Corinex press release via PR Newswire, August 24, 2026, announcing the Grid Intelligence Node; issued simultaneously in German, English, French, and Spanish.

  • Schneider Electric: India Data Center Growth Now Outpaces Its Core Business

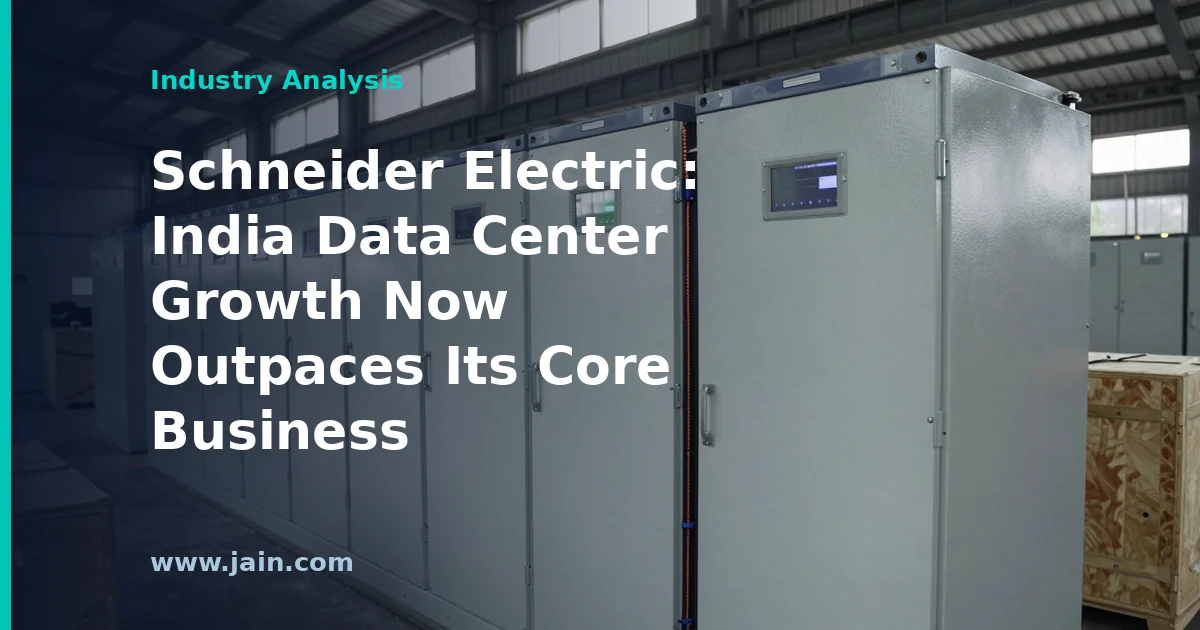

    Schneider Electric: India Data Center Growth Now Outpaces Its Core Business

    Reuters reported on May 24, 2026 that Schneider Electric — the French energy-management and industrial-automation group — says its data center business in India is now growing faster than its core business, propelled by the country’s AI-driven data center buildout. The comment positions India as one of the standout markets in a global surge of demand for the electrical equipment that powers AI computing.

    Executive Summary

    The substance of the report is a growth signal, not a contract or a capacity announcement: Schneider Electric, one of the world’s largest suppliers of the switchgear, uninterruptible power supplies (UPS — the battery-backed systems that keep servers running through grid disturbances), and power-distribution equipment that data centers depend on, says demand from India’s data center sector is expanding faster than the rest of its business there.

    That matters for two reasons. First, it is a read on where the AI infrastructure wave is spreading: hyperscale-style demand is no longer confined to the United States and a handful of established hubs. Second, it comes from the supply side. Data center operators announce ambitions; equipment vendors see purchase orders. When a major electrical supplier says one segment is outgrowing everything else it does in a market, that is a comparatively hard signal that capital is actually being spent.

    The caveat is proportionality: “outpacing core growth” describes a rate, not a size, and the report as available does not quantify either. A fast-growing segment can still be a small one.

    The AI Boom Is Really an Electrical Equipment Boom

    Every AI data center is, underneath the servers, an electrical engineering project. Racks of AI accelerators draw several times the power of conventional servers, and that power has to be received from the grid, transformed, distributed, conditioned, and backed up — all with equipment from a fairly short list of global vendors, of which Schneider Electric is one of the largest alongside the likes of ABB, Siemens, Eaton, and Vertiv. This is why the AI cycle has been felt so strongly by electrical suppliers: compute demand converts almost directly into orders for switchgear, transformers, UPS systems, busway, and cooling infrastructure.

    Schneider’s India comment extends a pattern the industry has watched for two years in the US and Europe: the constraint on AI capacity is increasingly power delivery, not chips alone. When equipment vendors describe data centers as their fastest-growing segment in a new geography, it signals that the buildout — and potentially the associated equipment lead-time pressure — is going global.

    Why India Is the Market to Watch

    India combines several ingredients that data center investors look for: a very large and growing base of internet users, data-localization rules that encourage storing Indian data in-country, comparatively low construction costs, and government interest in domestic AI capability. Global cloud providers and regional operators have all announced Indian expansion in recent years, concentrated around hubs such as Mumbai, Chennai, and Hyderabad.

    For an equipment vendor, India offers something else: Schneider Electric has a long-established manufacturing and commercial presence there, so local data center demand can be served substantially from local operations. If AI-driven orders are now growing faster than the company’s traditional Indian business — which spans buildings, industry, and grid infrastructure — it suggests the data center segment is becoming a structural growth pillar rather than a side market.

    Supply-Side Signals Deserve Attention — and Context

    It is worth being precise about what this report does and does not establish. A vendor saying a segment is “outpacing core growth” is a directional claim about relative growth rates. As reported, it does not disclose the segment’s revenue, its share of Schneider’s India business, order backlog, or a forecast horizon. Growth from a small base can outpace a large core for years without changing the overall business mix, so the claim is credible but not yet quantified in the material available.

    It is also a statement any vendor has an interest in making during an AI investment cycle: data center exposure is currently rewarded by investors. That does not make the claim wrong — Schneider’s global results through this cycle have consistently shown genuine data center strength — but buyers and investors should look for the numbers behind the narrative when the company next reports segment detail. For data center operators, the practical takeaway is less about Schneider specifically and more about the market it describes: if India’s buildout is accelerating, competition for equipment, grid connections, and skilled electrical contractors in that market will accelerate with it.

    Background

    Schneider Electric traces its roots to 1836 in France and has evolved from heavy industry into a global leader in energy management and automation. Its data center relevance deepened with the 2007 acquisition of APC, a leading UPS maker, and the company now supplies integrated power, cooling, and management systems to hyperscale and colocation operators worldwide. Throughout the current AI investment cycle, data centers have been among the strongest demand drivers across the electrical equipment industry.

    India’s data center market has expanded rapidly since the country’s 2020s push on data localization and digital infrastructure, attracting investment from global cloud providers and domestic operators alike. The AI wave has added a second demand layer on top of that cloud-driven growth, with power availability widely viewed as the buildout’s key constraint.

    Source: Schneider Electric sees India data center business outpacing core growth on AI boom — Reuters, reporting the company’s comments on AI-driven data center demand in India, May 24, 2026.
